- TECHNICALSPECIFICATIONS
- Model
- Ports
- Buttons
1 x Power On/Off button
1 x Pair button
1 x Reset button
- LED
1 x Power
1 xLAN
1 x Link
1 x WiFi
- Power Consumption
- Rated Voltage / Frequency / Current
- DIMENSIONS
- Unit Dimensions
76.8mm x 51.9mm x 68.4mm ( L x W x H )
- TECHNOLOGYANDSOFTWARE
- Standard and Produce
HomePlug AV: IEEE802.3, IEEE802.3u,IEEE 802.3ab
WiFi: IEEE802.11a/b/g/n
- Modulation Technology
- Encryption
HomePlug AV: 128-bit AESencryption
WiFi: WPA–PSK/WPA2-PSK Encryption
- Frequency band
HomePlug AV: 2Mhz ~ 30MHz
WiFi: 2.4GHz ~ 2.497GHz
- PACKAGE
- In The Box
1 x AV500 Powerline WiFi Extender
1 x AV500 Powerline Extender
2 x RJ45 Ethernet Cable
1 x Quick Guide
N300 and AV500 Powerline Kit
Make Everything Connect

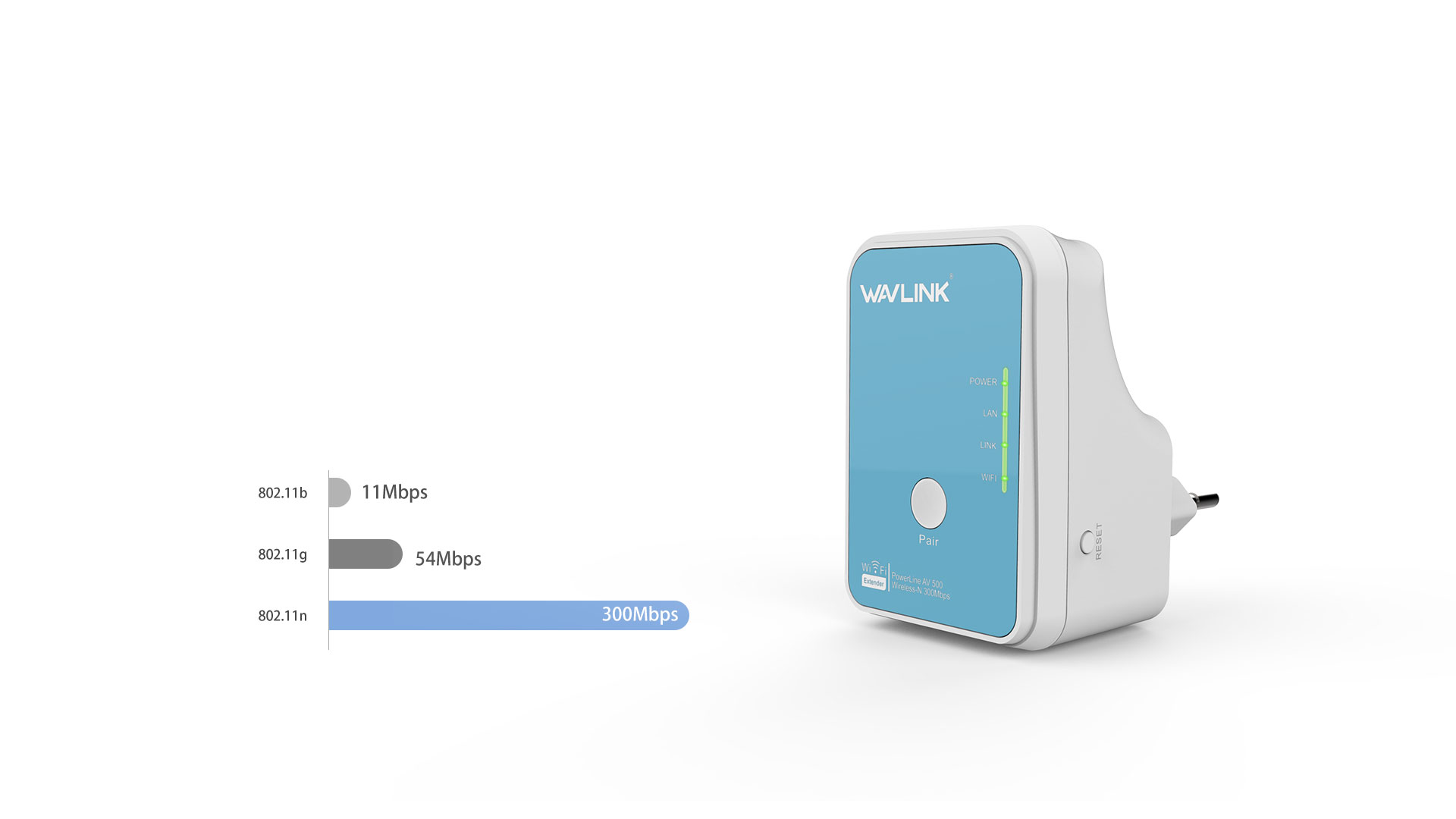

Fast Wi-Fi Signal Experience
The 502WM powerline kit can be of a great help in extending your Wi-Fi signal to eliminate the possible dead zones, in the meantime, the primary adapter provides you the data transmission rate up to 300Mbps.
Powerful Wall-Through Attribute
Connect a set of powerline kit to the laptop and the router respectively and Pair them both, then your Wi-Fi signal is much more strengthened. 502WM is able to send data through walls to avoid severe signal loss. With Homeplug AV standard, the data transmission rate reaches as fast as 500Mbps.

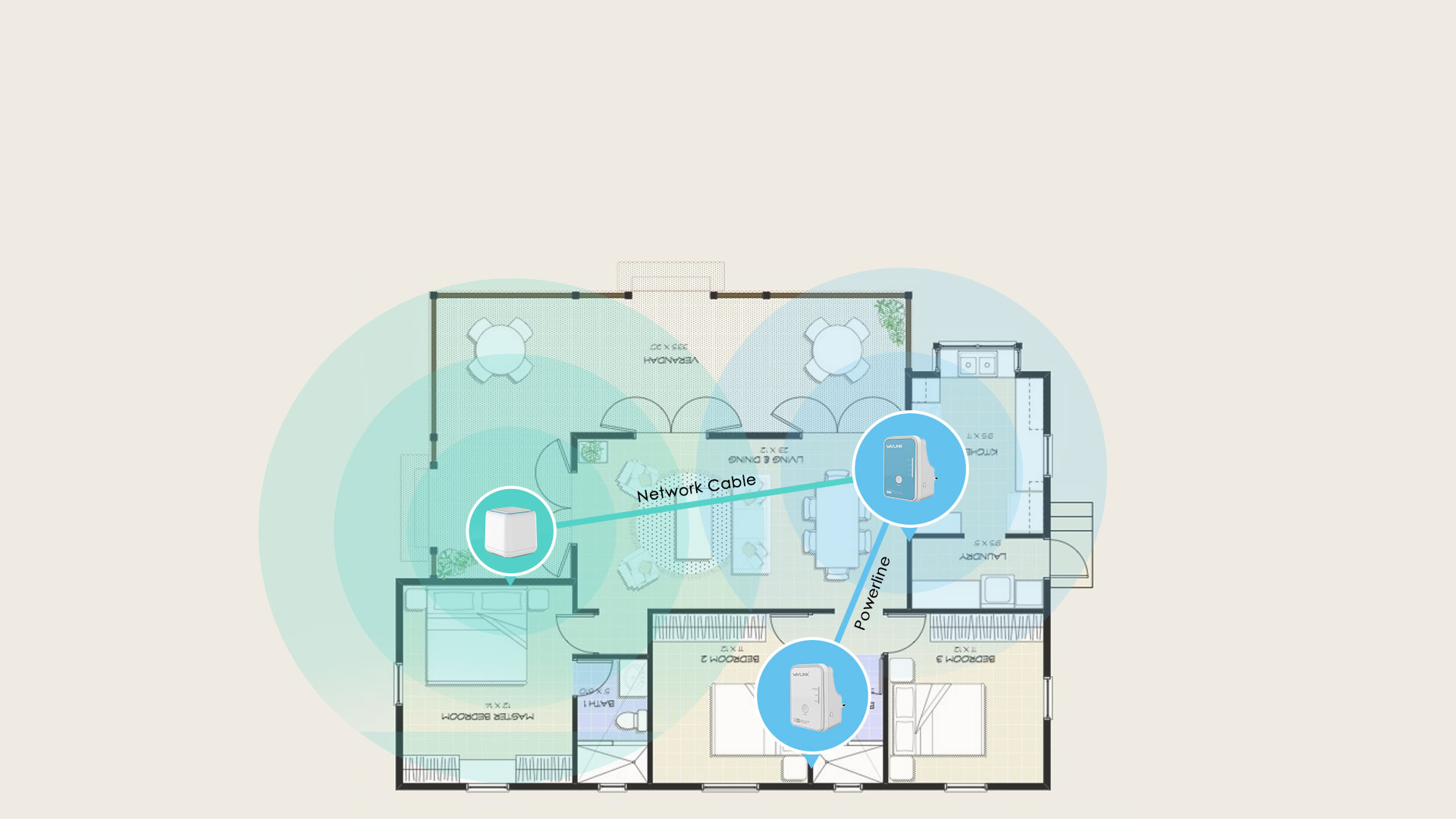

More Extender Kits, Larger Signal Coverage
To eliminate more signal dead zones, put more powerline kits in somewhere hard-to-reach, various devices work together along with the router to create a whole home network system that covers all possible spots of your home for a better and smooth online experience.

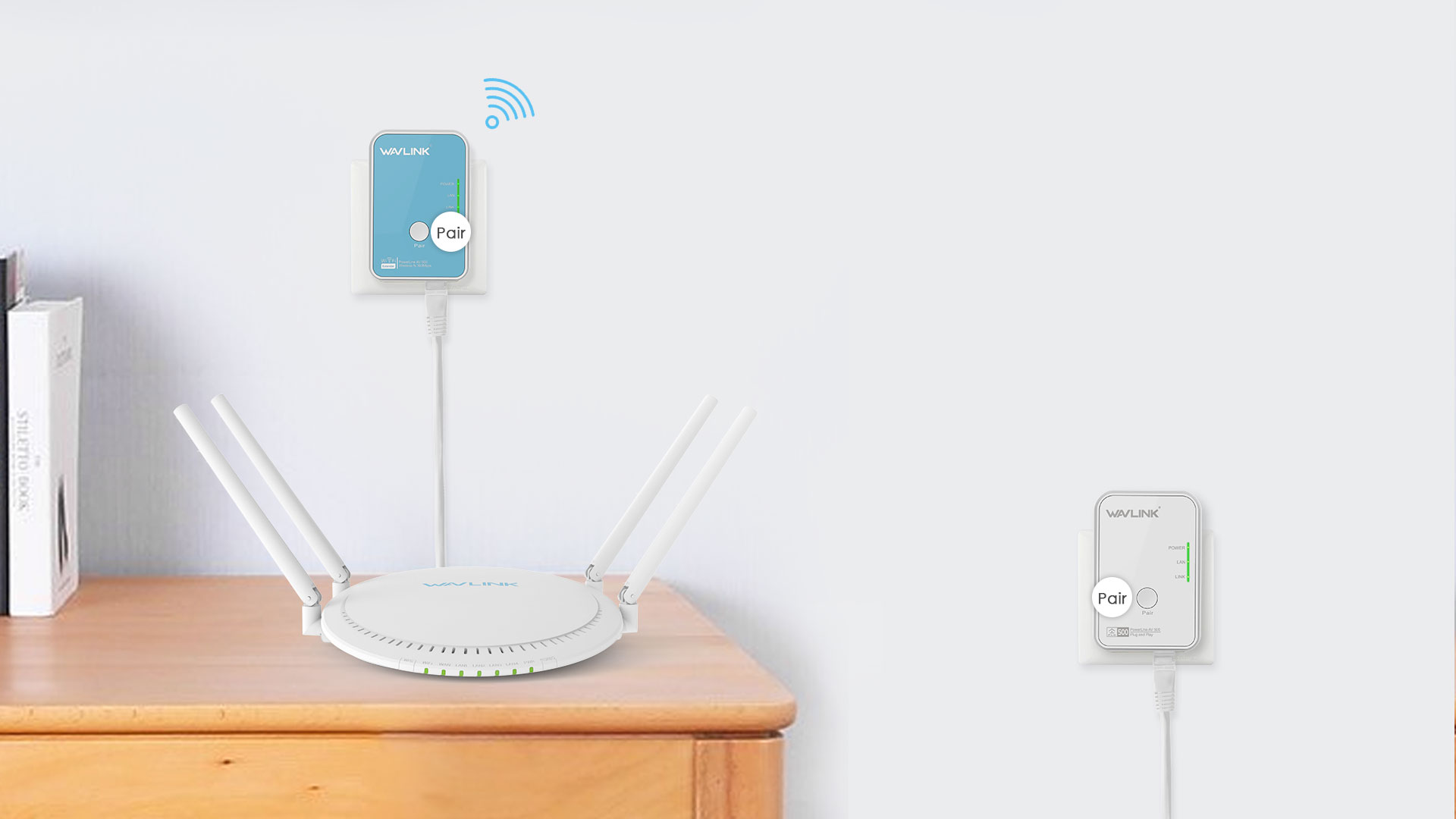

Easy to set up and Pair
Set up the Powerline kit, you only need to plug in both of them respectively, press and hold their Pair buttons, once two adapters stop blinking, your extended network is established.

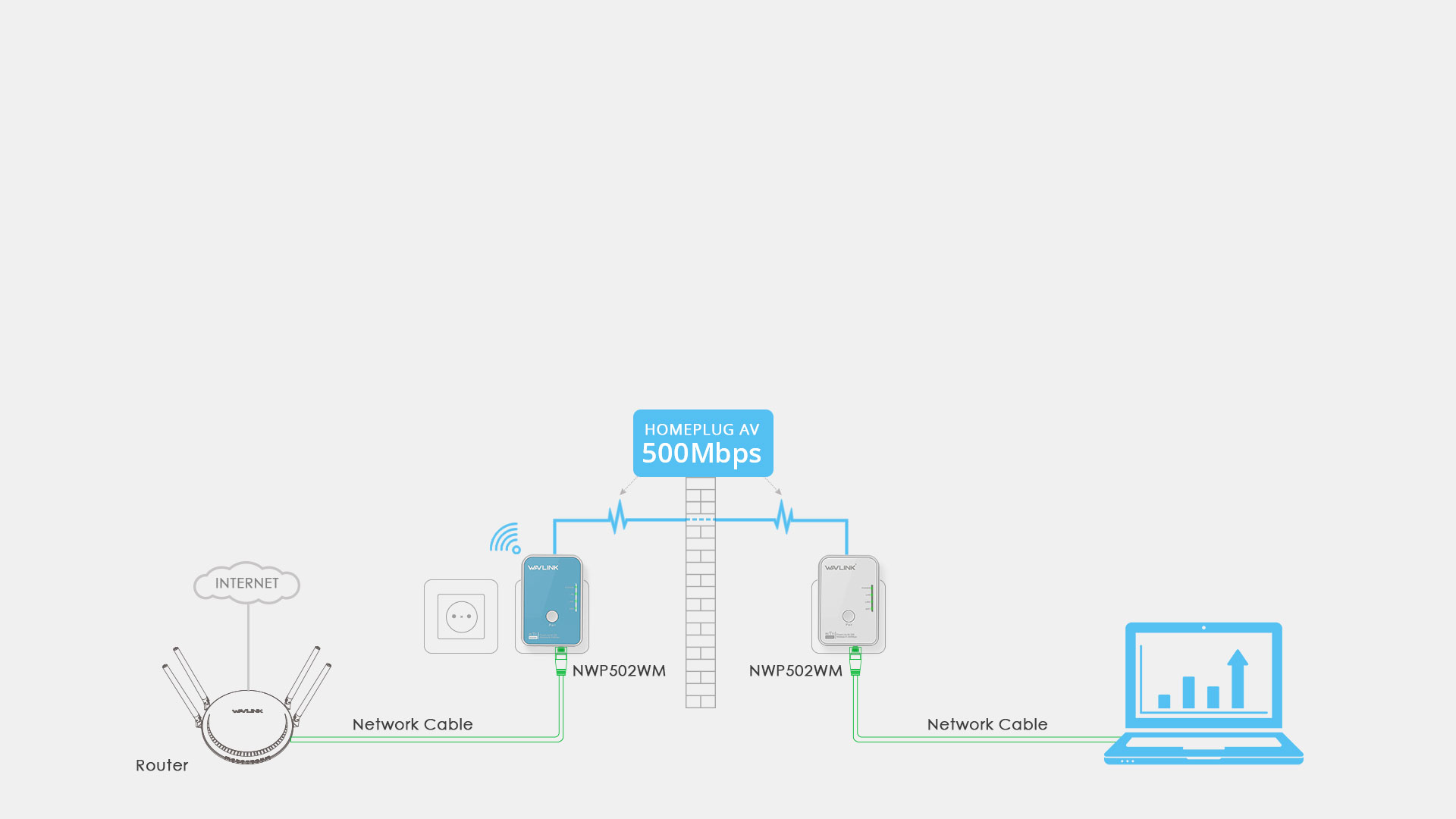

How does the Powerline Kit work?
Both primary adapter and the sub-adapter can be connected to router, PC, laptop and even HD TV. After setting up and configuring both adapters, you can connect your device to the Wi-Fi signal sent out by the primary adapter. Wherever you go in your home, you can enjoy a smooth and fast experience.
